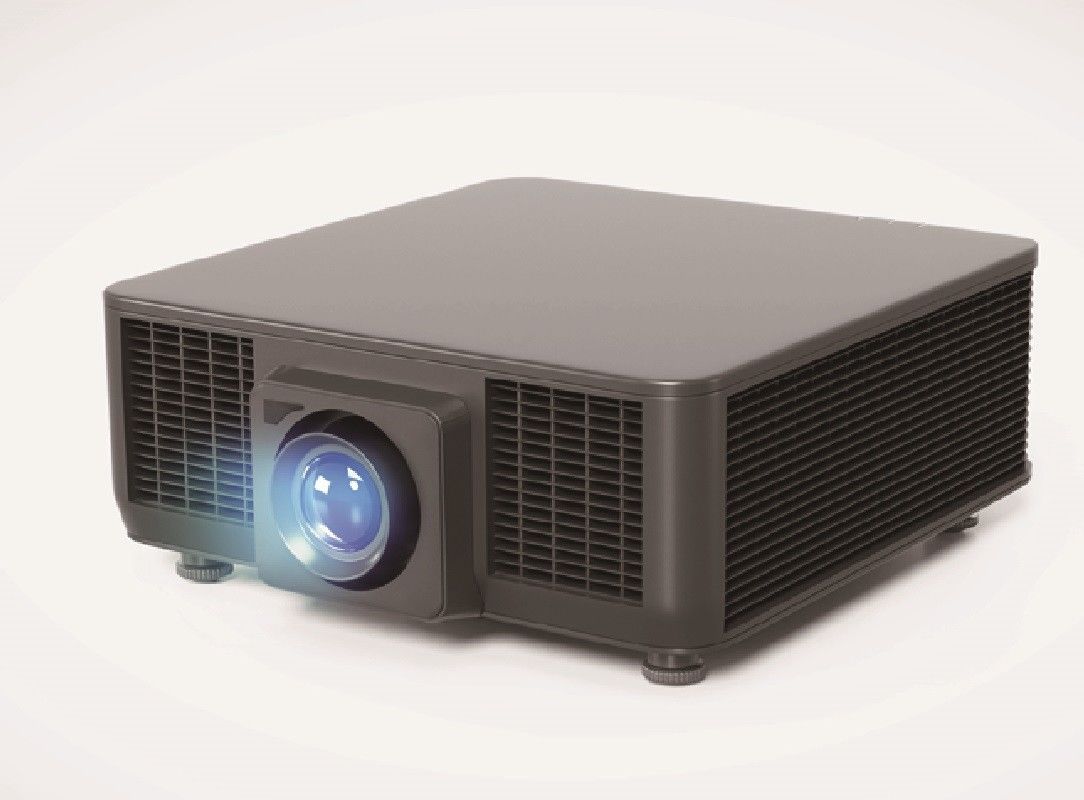

Automatic Large Venue 4k DLP Projector 10000Lm High Brightness Laser Light Source

Brand Name:	Yeoan
Model Number:	YA-W10
MOQ:	5
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Light Luminance:

10000 Lumens

Projection Light Source:

Laser

Display Technology:

DLP

Standard Resolution:

1920×1200 Compatible With 1920×1080, 1280×800, 1024×768

Projection Ratio:

Optional Zoom Lens (0.36-5.5 Zoom Range)

Lens Shift Range:

V: +/-50%, H: +/-15%

Aspect Ratio:

16:10 Compatible With 16:9, 4:3

Focus Mode:

Electric Motorized

Keystone Correction:

Automatic, Vertical: ± 20 Degrees Horizontal: ± 20 Degrees

Projection Mode:

360° Projection

Packaging Details:

talked with me to get the details

Highlight:

Venue 4k dlp projector

10000Lm 4k dlp projector

Venue dlp laser projector

Product Description

Automatic Large Venue 4k DLP Projector 10000Lm High Brightness Laser Light Source

Key Features

DLP technology with 0.67" DMD chip for superior image quality
10000 lumens brightness with 3,500,000:1 contrast ratio
Laser light source with 25,000 hours lifespan in ECO mode
Standard resolution of 1920×1200 (compatible with multiple formats)
IP6 level dustproof construction for durability
Advanced four-corner keystone adjustment and color settings
Network control via RJ-45 interface and RS-232 for centralized management
Aviation-grade testing for reliable 24/7 operation

Technical Specifications

Projection System	DLP projection system with 0.67" DMD chip
Brightness	10,000 lumens (average)
Contrast Ratio	1,800:1 static; 10,000:1 dynamic; 3,000,000:1 extreme black
Resolution	1920×1200 (compatible with 1920×1080, 1280×800, 1024×768)
Aspect Ratio	16:10 (compatible with 16:9, 4:3)
Light Source	Laser phosphor (20,000 hours standard mode, 25,000 hours ECO mode)
Projection Lens	6 electric lenses with shift, zoom, and focus capabilities
Keystone Correction	±20° horizontal and vertical
Lens Shift	Vertical: ±50%, Horizontal: ±15%
Installation	720-degree installation capability
Dimensions	484 × 519 × 178 mm (17.3 kg without lens)

Connectivity

HDMI 1.4 (HDCP compliant) ×2
DVI-D (HDCP compliant)
HDBaseT ×1
RS232 (D-sub 9pin)
RJ45 network port
USB-A and miniUSB (for software upgrade)

Operating Conditions

Working height: 0-2500m (high altitude mode above 1500m)
Temperature: 5-40℃ (non-condensing)
Humidity: 10%-85%

Note: Brightness measurements follow ISO/IEC 21118:2012 standard. HDBaseT is a trademark of the HDBaseT Alliance. For optimal performance at high altitudes above 1500m with temperatures exceeding 35°C, additional cooling is recommended.
