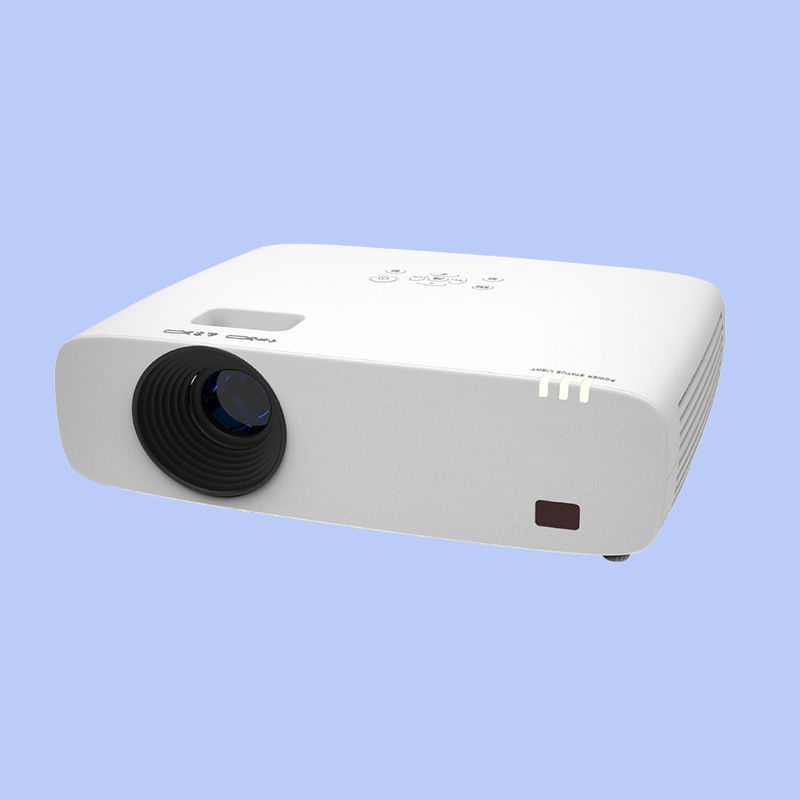

Auditorium 6000 Lumen Laser Projector Programmable 4k Short Throw

Brand Name:	Yeoan
Model Number:	YA5007X
MOQ:	5
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Brightness:

5000lm Mkt

Display Technology:

3LCD

Projection Light Source:

Laser

Native Resolution:

XGA (1024 X 768)

Projection Screen Size:

30-300"

Projection Ratio:

1.34~2.22：1

Aspect Ratio:

Native:16:10 Compatible: 4:3/16:9

Focus Mode:

Manual

Keystone Correction:

V: ±30° H：±30° 4 Corner

Packaging Details:

Packaging Box Dimensions (WxDxH mm): 492*443*239

Highlight:

Auditorium 6000 lumen laser projector

Programmable 6000 lumen laser projector

Auditorium 6000 lumen short throw projector

Product Description

Auditorium 5000lm Programmable Led Light Portable Laser Projector 4k 3LCD Display For Conference

Featuring the latest laser phosphor technology, the projector delivers 5,000 ANSI lumens of brightness to ensure crisp images even in rooms with ambient lighting. Enjoy a maintenance-free projection experience without having to deal with complicated lamp replacements. This eco-friendly projection solution features a compact design for easier transportation. Experience screen sizes up to 300” in Full HD resolution for show-stopping images designed to fill up boardrooms, lecture halls, auditoriums and other public spaces.

Highlights: Mini size and light weight, 3LCD display, Laser light source,

1.2X, 1.6X and 1.66X zoom lenses 30,000H light source life

5,000,000:1 dynamic contrast ratio

Application:

Widely used at home, classroom, office, meeting room, hotel, hospital, school, church, factories and son on.

Key parts
	Panel	SONY 0.63"
	Lens Maker	Lens
	Throw Ratio	1.34~2.22:1
	Zoom Ratio	1.66X Zoom
	Lens Shift	N/A
	Light source	LASER
Brightness
ISO21118	Brightness --MKT	5000
	Brightness --TYP	4500
	Brightness --MIN	4000
Overall Spec
Light source Life time	FullNormal/Normal mode	20000hrs
	ECO1 mode	30000hrs
	ECO2 mode	30000hrs
Projection Lens	F	1.7~2.11
	f	17.5~29.01mm
	Zoom/Focus	Manual
	Throw Ratio	1.34~2.22:1
	Zoom Ratio	1.66x optics
	Screen size	30-300 inch
	Lens Shift	N/A
CR	Dynamic Contrast Ratio (FOFO)	5000,000:1
CR	Native Contrast Ratio (FOFO)	400:1(Min)
Noise	Noise(dB)	37dB(Normal) 30dB(ECO1) 28dB(ECO2)
Uniformity	Uniformity(Actual Min) -ISO21118	80%
AR	Aspect Ratio	Native:4:3 Compatible: 16:9/16:10
Terminal(I/O port)
Input	VGA	*1
	HDMI	*2
	Video	*1
	Audio in (mini jack,3.5mm)	*1
	Audio in (RCA×2) <Audio L/R>	*1
	USB-A	*1
	USB-B	*1(Display)
	RJ45	*1(Display)
	YCbCr/Component	N/A
	S-Video	N/A
Output	VGA	*1
Output	Audio out (mini-jack,3.5mm)	*1
Control	RS232	*1
Control	RJ45	*1 (Control)
	Other Interface	N/A
General Spec
Audio	Speaker	16W*1
Dust filter		W/Filter
Filter Life time		7000h
Power Consumption	Power Requeirements	100~240V@ 50/60Hz
	Power Consumption (Normal) (Max)	235
	Power Consumption (ECO1) (Max)	175
	Power Consumption (ECO2) (Max)	160
	ECO Standby Mode Power Consumption	<0.5W
Temp.&Humidity	Operating Temp.	0 to 40deg.C
	Operating Thumidity.	20-80%
	Storage Temp.	‘-10 to 50deg.C
	Storage Thumidity.	10-85%
	High altitude	0-3000m
Other Functions
Keystone	Keystone Correction (Lens@center)	V: ±30° H:±30° 4 corner
OSD	Languages	26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi
LAN Control	LAN Control-RoomView (Crestron)	Yes
	LAN Control-- AMX Discovery	Yes
	LAN Control-- PJ Link	Yes
Scanning Frequency	H-Synch Range	15~100KHz
Scanning Frequency	V-Synch Range	24~85Hz
Display Resolution	Computer Signal Input	VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K @30Hz
Display Resolution	Video Signal Input	480i, 480p, 576i, 576p, 720p, 1080i and 1080p
SW setting	Auto Setup	INPUT SEARCH,AUTO PC,Auto Keystone
	Blank	Yes
	Suspend	Yes(5miniutes no singnal as default
	Picture mode	Dynamic,Standard,Cinema, Colorboard,,Blackboard(Green)
	Cooling time	5s
	Closed caption	Yes
	Auto Ceiling	Yes
	D-Zoom	1~19
Others	360° projection	Yes
Others	Wireless display (Optional function)	SmartPhone: Android:Install APK for Android iphone: Airplay function PC : Support WiFi Display@Windows&MAC system through dongle
Dimension&Weight
	MAX Dimensions (WxDxH mm)	390294128
	Net. Weight (KG)	5Kg
	Packaging Box Dimensions (WxDxH mm)	492443239
	Gross. Weight (KG)	~6.5Kg
Accessory
	Manual Languages	Chinese,English
	Standard Accessaries	Power cord Remote control&RC Battery
Regulation List
WW	CB	√
US	cTUVus	√
	FCC	√
	FDA	√
EU	CE-EMC	√
	CE-LVD	√
	CE-ERP	√
IEC60825-1:2007	class1	√
EMC Class
	EMC Class	Class B@3dBm
