| Brand Name: | Yeoan |
| Model Number: | YA4660 |
| MOQ: | 5 |
| Payment Terms: | L/C, T/T, Western Union |

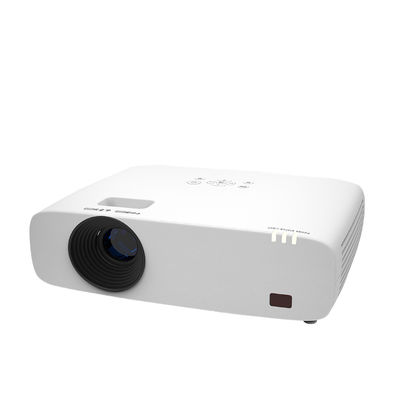

4600lm Standard Throw Laser Projector 4K WUXGA 3LCD Display For Home Theater
Create an immersive entertainment system with this Home Cinema HD projector. Full HDR color processing ensure accurate reproduction of premium, cinematic content for immersive viewing. The pixel-shift processor of this 4600-lumen Home Cinema projector enhances the quality of lower-resolution videos, getting you super watching experience.
Highlights: Fashion design and light weight, WUXGA(1920×1200)
3LCD display, Laser light source,
1.2X, 1.6X and 1.66X zoom lenses 30,000H light source life
5,000,000:1 dynamic contrast ratio
Application:
Widely used at home, classroom, office, meeting room, hotel, hospital, school, church, factories and son on.
| Key parts | ||
| Panel | SONY 0.63" | |
| Throw Ratio | 1.37~1.65:1 | |
| Zoom Ratio | 1.2X Zoom | |
| Lens Shift | N/A | |
| Light source | LASER | |
| Resolution | WUXGA(1920×1200) | |
| Brightness | ||
| ISO21118 | Brightness --MKT | 4600 |
| Brightness --TYP | 4140 | |
| Brightness --MIN | 3680 | |
| Overall Spec | ||
| Light source Life time | FullNormal/Normal mode | 20000hrs |
| ECO1 mode | 30000hrs | |
| ECO2 mode | 30000hrs | |
| Projection Lens | F | 1.6~1.76 |
| f | 19.158~23.018mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.37~1.65:1 | |
| Zoom Ratio | 1.2x optics | |
| Screen size | 30-300 inch | |
| Lens Shift | N/A | |
| CR | Dynamic Contrast Ratio (FOFO) |
5000,000:1 |
| Native Contrast Ratio (FOFO) |
400:1(Min) | |
| Noise | Noise(dB) | 37dB(Normal) 30dB(ECO1) 28dB(ECO2) |
| Uniformity | Uniformity(Actual Min) -ISO21118 |
80% |
| AR | Aspect Ratio | Native:4:3 Compatible: 16:9/16:10 |

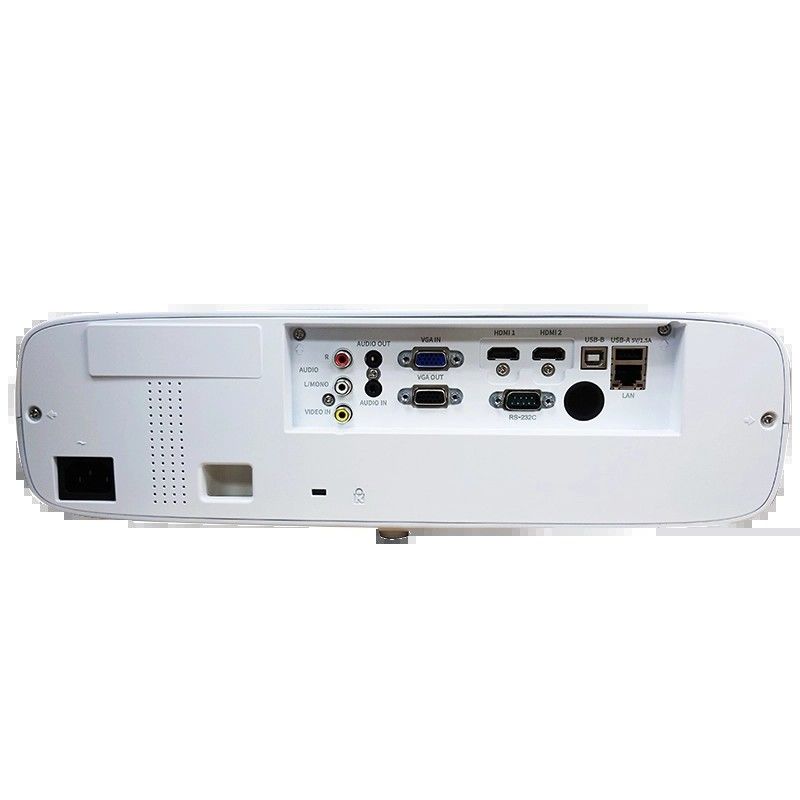

| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI | *2 | |
| Video | *1 | |
| Audio in (mini jack,3.5mm) |
*1 | |
| Audio in (RCA×2) <Audio L/R> | *1 | |
| USB-A | *1 | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| YCbCr/Component | N/A | |
| S-Video | N/A | |
| Output | VGA | *1 |
| Audio out (mini-jack,3.5mm) |
*1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| Other Interface | N/A | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter | |
| Filter Life time | 7000h | |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
| Power Consumption (Normal) (Max) |
235 | |
| Power Consumption (ECO1) (Max) |
175 | |
| Power Consumption (ECO2) (Max) |
160 | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Temp.&Humidity | Operating Temp. | 0 to 40deg.C |
| Operating Thumidity. | 20-80% | |
| Storage Temp. | ‘-10 to 50deg.C | |
| Storage Thumidity. | 10-85% | |
| High altitude | 0-3000m | |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) |
V: ±30° H:±30° 4 corner |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-- AMX Discovery |
Yes | |
| LAN Control-- PJ Link |
Yes | |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K @30Hz |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p |
|
| SW setting | Auto Setup | INPUT SEARCH,AUTO PC,Auto Keystone |
| Blank | Yes | |
| Suspend | Yes(5miniutes no singnal as default | |
| Picture mode | Dynamic,Standard,Cinema, Colorboard,,Blackboard(Green) | |
| Cooling time | 5s | |
| Closed caption | Yes | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~19 | |
| Others | 360° projection | Yes |
| Wireless display (Optional function) |
SmartPhone: Android:Install APK for Android iphone: Airplay function PC : Support WiFi Display@Windows&MAC system through dongle |
|
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) |
390*294*128 | |
| Net. Weight (KG) | 5Kg | |
| Packaging Box Dimensions (WxDxH mm) | 492*443*239 | |
| Gross. Weight (KG) | ~6.5Kg | |
| Accessory | ||
| Manual Languages | Chinese,English | |
| Standard Accessaries | Power cord Remote control&RC Battery | |
| Regulation List | ||
| WW | CB | √ |
| US | cTUVus | √ |
| FCC | √ | |
| FDA | √ | |
| EU | CE-EMC | √ |
| CE-LVD | √ | |
| CE-ERP | √ | |
| IEC60825-1:2007 | class1 | √ |
| EMC Class | ||
| EMC Class | Class B@3dBm | |
