Multimedia Horizontal Smart Kiosks Touch Digital Signage Machine 1920x1080

Brand Name:	YEOAN
Model Number:	QM-55
MOQ:	50
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Screen Size:

55 Inches

Resolution:

1920x1080

Display Type:

LCD

Viewable Area:

1209.6*680.4 Mm

Pixel Pitch:

0.63* 0.63mm

Viewing Angle:

178°

Response Time:

8 Ms

Contrast Ratio:

1200:1

Brightness:

350 Cd/m²

Connectivity:

HDMI, VGA, USB

Touch Screen:

Yes

Operating System:

Android Or Windows

Packaging Details:

Packing carton: 1350*848*160 mm

Highlight:

Smart Kiosks Machine

1920x1080 Smart Kiosks

Multimedia digital signage kiosk

Product Description

Multimedia Horizontal Smart Kiosks Touch Digital Signage Machine 1920x1080

Key Specifications

Attribute	Value
Screen Size	55 inches
Resolution	1920x1080
Display Type	LCD
Viewable area	1209.6*680.4 mm
Pixel pitch	0.63* 0.63mm
Viewing Angle	178°
Response Time	8 ms
Contrast Ratio	1200:1
Brightness	350 cd/m²
Connectivity	HDMI, VGA, USB
Touch Screen	Yes
Operating System	Android or Windows

Product Overview

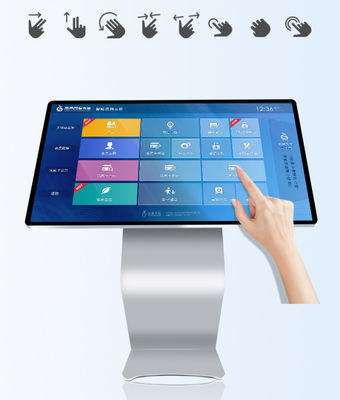

The 55-inch Horizontal Kiosk Infrared Touch All-In-One Machine is a versatile multimedia information solution designed for professional applications.

This advanced touch all-in-one machine combines a high-performance industrial-grade motherboard (Intel processor), memory, solid-state hard drive, and graphics card in an ergonomic design. The slim, elegant housing features high-quality cold-rolled steel with industrial-grade paint for durability, offering rust-proof, anti-magnetic, and anti-static protection.

Ideal for public information queries, advertising displays, media interaction, conference content presentation, and retail product displays, this system operates simply, quickly, and securely. It supports 24/7 continuous operation while maintaining stability and performance.

Key Features

Multi-point intelligent touch control: Fast response with excellent light resistance, driver-free plug-and-play operation, and smooth handwriting recognition.
High-definition resolution: Full HD 1920x1080 LCD panel with 178° viewing angle, high contrast, and brightness for clear, stable, and colorful display.
Multimedia information processing: Real-time video/audio decoding and playback with wide format compatibility and network connectivity for remote management.
Integrated design: Slim aesthetic with flexible mounting options (wall or floor), easy maintenance, industrial-grade components, and efficient heat dissipation.

Technical Specifications

Category	Specification
Display Parameters
Panel size	55"
Resolution	1920*1080 (pixels)
Pixel pitch	0.63* 0.63mm
Brightness	350cd/m² (typ.)
Contrast	1200:1 (typ.)
Color	16.7M (8bit)
Response time	8ms (typ.)
Viewing area (H*V)	1209.6*680.4 mm
Angle (H*V)	178°/178°
Service life	30,000 hrs (typ.)
Mainboard Parameters (Optional)
Running system	Win 7/Win 10
Chip	I5-3210M Dual-core four-thread 2.5GHz
Memory	4G
Storage	128G
Network	100M/1000M Ethernet/WiFi-2.4G
Touch Parameters
Touch Type	Infrared touch
Touch points	10 point
Power Supply
Speaker power	5W*2
Standby power	≤0.5W
Power supply	AC110V-220V, 50-60 Hz
Machine power	≤150W
Physical Specifications
Housing Material	Aluminum frame + tempered glass + metal back cover
Shell color	Silver + black frame + black back cover
Bare metal size (WHD)	1275.2754.273.9 mm
Net weight	50KG
Gross Weight	55KG
