| Brand Name: | YEOAN |
| Model Number: | YLD series |
| MOQ: | 50 |
| Payment Terms: | L/C, T/T |

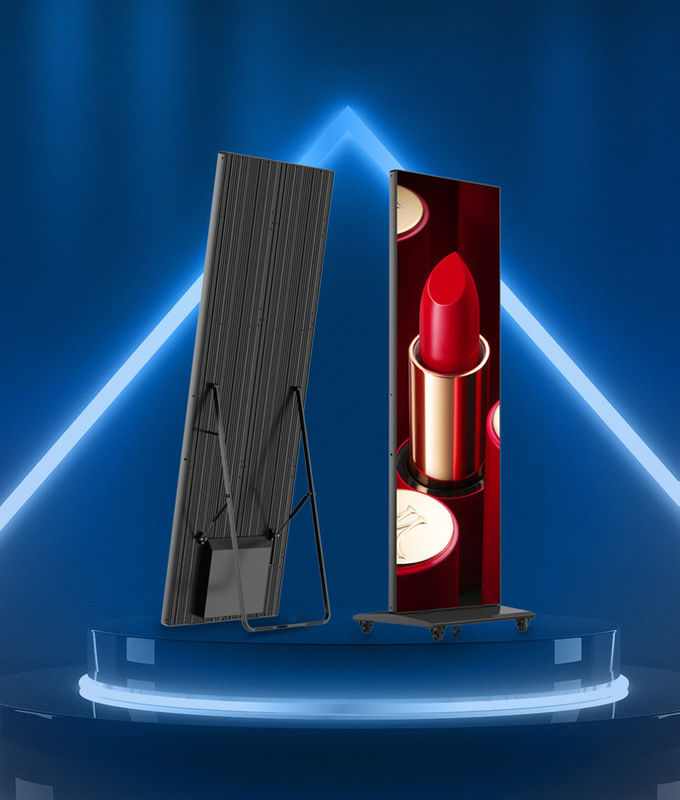

SMD LED Ultrathin Advertising Led Display Screen Digital Board For Outdoor
Description:
LED mirror screen, also known as "poster screen", is evolved from advertising machine and also belongs to small pitch LED display screen. A subdivided LED advertising mirror screen is controlled by terminal software, network information transmission and multimedia terminal display to form a complete advertising broadcast control system, and uses pictures, text, video, small plug-ins and other multimedia materials for advertising.
160 ° ultra wide viewing angle, multi angle viewing without reflection or color deviation, attracting customer attention from multiple angles;
3840Hz high Refreshing, wide color gamut, restoring original colors, stunning picture quality, eye-catching and even more attractive.
Light and easy to move and place, flexibly applied to various scenes such as exhibition centers, shops, stations, shopping centers, etc
Specifications:
| ModelNo.: | LT-Poster1.5 | LT-Poster1.8 | LT-Poster1.5 | LT-Poster1.8 | LT-Poster2.0 | LT-Poster2.5 |
| Pixel density(mm) | 1.5 | 1.8 | 1.5 | 1.8 | 2 | 2.5 |
| LEDtype | SMD | SMD | SMD | SMD | SMD | SMD |
| display size(WXH)(mm) | 600×1687.5 | 600×2025 | 640×1920 | 640x1920 | 640×1920 | 640×1920 |
| display resolution(WXH)(pixel) | 384×1080 | 320×1080 | 416x1248 | 344x1032 | 320x960 | 256×768 |
| weight(kg) | 57/34 | 61/38 | 71/42 | |||
| housing material | AL. | |||||
| angle(H/M) | 160°/160° | |||||
| refresh freq.(Hz) | 3840 | |||||
| contrast ratio | 8000:1 | |||||
| Brightness(nits) | 600 | 500 | ||||
| Voltage(M) | AC100~240 | |||||
| Average power consumption(W/m2) | 120 | 125 | 120 | 125 | 115 | 105 |
| Max.Power consumptionW/m2) | 480 | 500 | 480 | 500 | 460 | 420 |
| operating system | Android | |||||
| Video interface | Videointerface:HDMI*2(1in1out),USB3.0*1;Audiointerface:ExternalAudiointerface; Controlinterface:R)45,WIFI,localAPnetwork,4Gnetwork(optional);Sensorinterface(connectedto brightnesstemperatureandhumiditysensors) |
|||||
| maintence way | fron(screen)/rear(controlcase) | |||||
| IP class | frontIP30/rearIP60 | |||||
