| Brand Name: | YEOAN |
| Model Number: | YWL8017T |
| MOQ: | 100 |
| Payment Terms: | L/C, T/T |

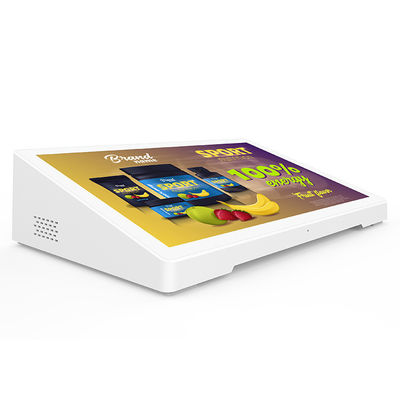

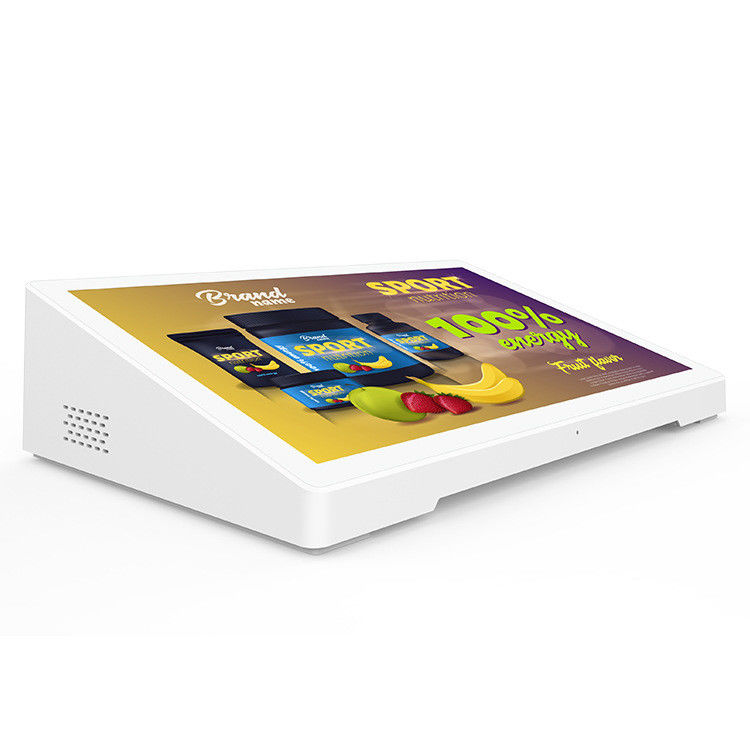

Portable Desktop Display Screen All In One Touchable Interactive Terminal Anti Theft 8"
Description:
Various size
Professional hardware manufacturing, deep R&D integration
10-point touch
POE power supply
Anti-theft design
A-size screen
Software customization
Ergonomic angle horizontal/vertical screen appearance design
Can be placed on the desktop at will to suit a variety of demand scenarios
Anti-theft design makes public places more secure
The bottom safety lock design easily solves the worry of theft
Unrestricted placement and suitable for a variety of scenarios
Lightweight and anti-skid pad design
The bottom is equipped with a rubber anti-skid pad for more stable placement on the desktop
Smooth touch and more comfortable operating experience
Specifications:
| Model | YWL8017T |
| Display parameters | |
| Panel size | 8" |
| Resolution | 1280*800(pixels) |
| Brightness | 300cd/m² (typ.) |
| Contrast | 800:1 (typ.) |
| Color | 16.7M (8bit) |
| Angle (H*V) | 170° / 170° |
| Service life | 30,000 hrs (typ.) |
| Android function parameters | |
| Operating system | Android 6.0 |
| Chip | RK3128 quad-core cortex A7 main frequency 1.5GHz |
| Memory | 1G |
| Storage | 16G |
| Network | 100M Ethernet/WiFi-2.4G |
| Video format | MPEG2-4,H.264,etc. |
| Image format | JPG, JPEG, BMP, PNG,etc. |
| Menu language | Chinese/English,etc. |
| Touch | 5-point capacitive touch |
| External connection port | |
| USB2.0 | *1 |
| USB2.0 (OTG) | *1 |
| RJ45 | *1 |
| WIFI 2.4G | *1 |
| 3.5mm headphone output interface | *1 |
| Power jack | *1 |
| Power supply | |
| Speaker power | 2W*2 |
| Power supply for the whole machine | DC12V 1.5A |
| Working environment | |
| Working temperature | 0℃~40℃ |
| Working humidity | 20%～85% (no condensation) |
| Storage temperature | -10℃～60℃ |
| Storage humidity | 10%～60% (no condensation) |
| Material | |
| Casing material | Plastic shell + tempered glass |
| Casing color | White + white frame |
| Dimensions | |
| Bare machine size (W*H*D) | 204.3*139.44*103.42 mm |
| Packaging outer size (W*H*D) | 254*190*123mm |
| Weight | |
| Net weight | 0.48KG |
| Gross weight | 0.99KG |
| Accessories | |
| Warranty card | *1 |
| Certificate of conformity | *1 |
