Sealed Dustproof Automatic Large Venue Laser Projectors HD 3LCD DLP 20000Lm

Sealed Dustproof Automatic Large Venue Laser Projectors HD 3LCD DLP 20000Lm

Brand Name: Yeoan
Model Number: YG1606U
MOQ: 5
Payment Terms: L/C, T/T, Western Union
Detail Information
Display Technology:
3LCD
Projection Light Source:
Laser
Light Luminance:
20000 Lumens
Standard Resolution:
WUXGA (1920 X 1200)
Projection Ratio:
1.24-2.01 :1
Aspect Ratio:
16:10 Native:16:10(Compatible: 4:3/16:9)
Focus Mode:
Electric Motorized
Keystone Correction:
Automatic, Vertical: ± 30 Degrees Horizontal: ± 30 Degrees
Projection Mode:
360° Projection
Packaging Details:
Carton box size: 745**370*630mm (not including len)
Highlight:

Sealed Dustproof Large Venue Laser Projectors

,

20000Lm Large Venue Laser Projectors

,

Sealed Dustproof lcd dlp

Product Description

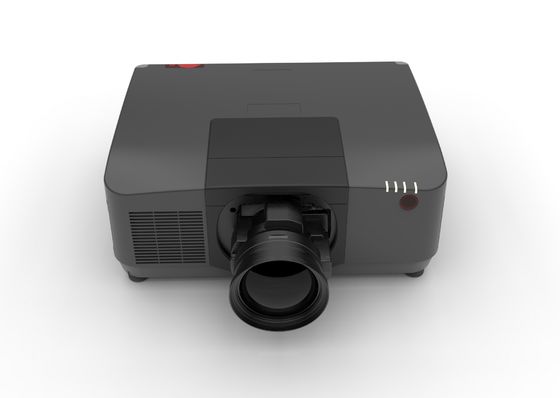

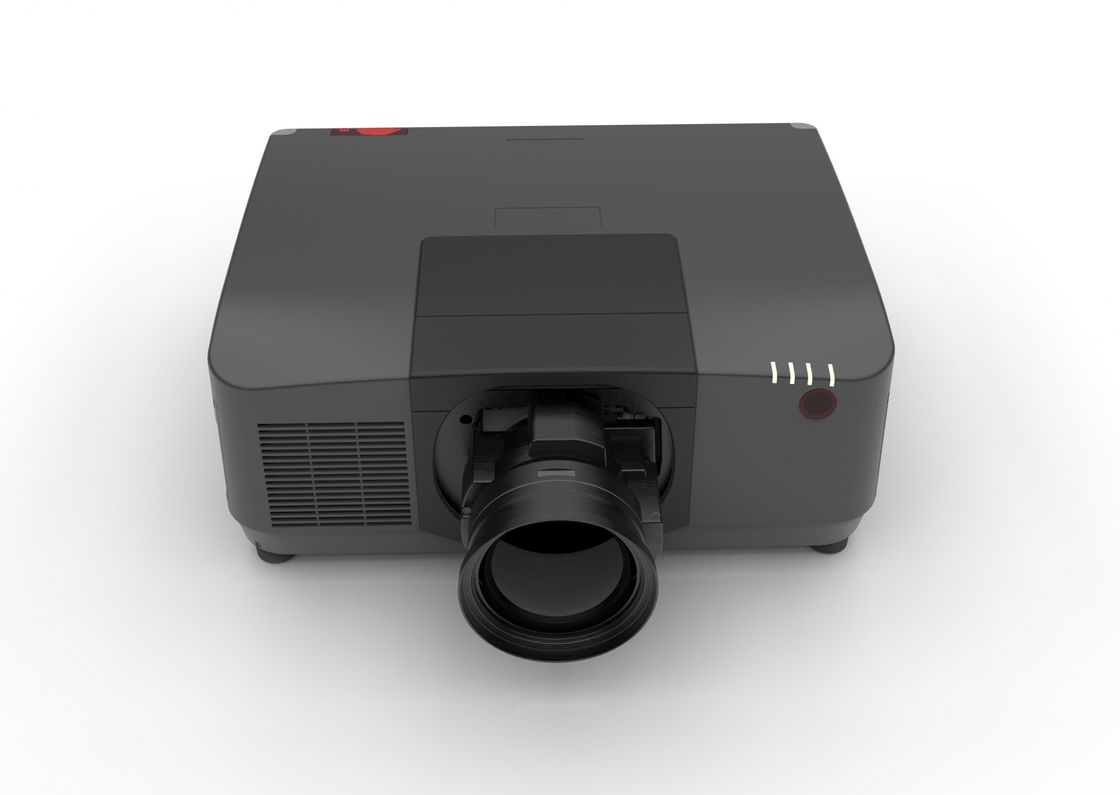

Sealed Dustproof Automatic Large Venue Laser Projectors HD 3LCD DLP 20000Lm
Professional-Grade Projection Solution

High-performance laser projector designed for large venues featuring sealed dustproof construction, WUXGA resolution, and exceptional 20,000 lumens brightness.

Key Specifications
Display Technology 3LCD
Light Source Laser
Brightness 20,000 Lumens
Resolution WUXGA (1920 x 1200)
Projection Ratio 1.24-2.01:1
Contrast Ratio 3,000,000:1 (Dynamic)
Laser Life 30,000 Hours
Advanced Features
  • Sealed dustproof design for reliable operation
  • Electric motorized focus with lens position memory
  • Automatic keystone correction (±30° vertical/horizontal)
  • 360° all-direction projection capability
  • Edge blending and multi-point correction
  • Lens shift function for flexible installation
  • NFC and timer power functions
  • Multiple projection modes (front/rear, ceiling/table)
Technical Specifications
Model Number YG1606U
Projection Size 60-500 inches
Power Consumption 1155W (max) / 580W (ECO mode)
Noise Level 41-46 dB (depending on mode)
Dimensions 599 × 240.2 × 493.8 mm (without lens)
Weight 28.9 kg
Connectivity Options
  • HDMI (2 inputs, 1 output)
  • VGA, DVI, HDBaseT
  • LAN, RS-232, DMX512
  • USB (Type A and B)
  • Audio In/Out
  • Optional SDI connection
Application

Ideal for large venues including auditoriums, conference centers, and event spaces. Supports optional lenses for varying projection distances.
