WUXGA DLP Movie Large Venue 4k Projector Full Hd 8300lm 1920x1200

Brand Name:	Yeoan
Model Number:	YAM8062
MOQ:	5
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Brightness:

8300lm

Display Technology:

3LCD

Projection Light Source:

Laser

Standard Resolution:

WUXGA (1920 X 1200)

Lens Optional:

Yes

Standard Lens Ratio:

1.30-3.02：1

Standard Lens Shift:

V:＋50%～10%、 H:±20%

Aspect Ratio:

Native:16:10 Compatible: 4:3/16:9

Focus Mode:

Manual Or Auto Optional

Keystone Correction:

V: ±30° H：±30°

Packaging Details:

Packaging Box Dimensions (WxDxH mm): 732*352*630

Highlight:

WUXGA DLP large venue 4k projector

8300lm large venue 4k projector

WUXGA dlp projector full hd

Product Description

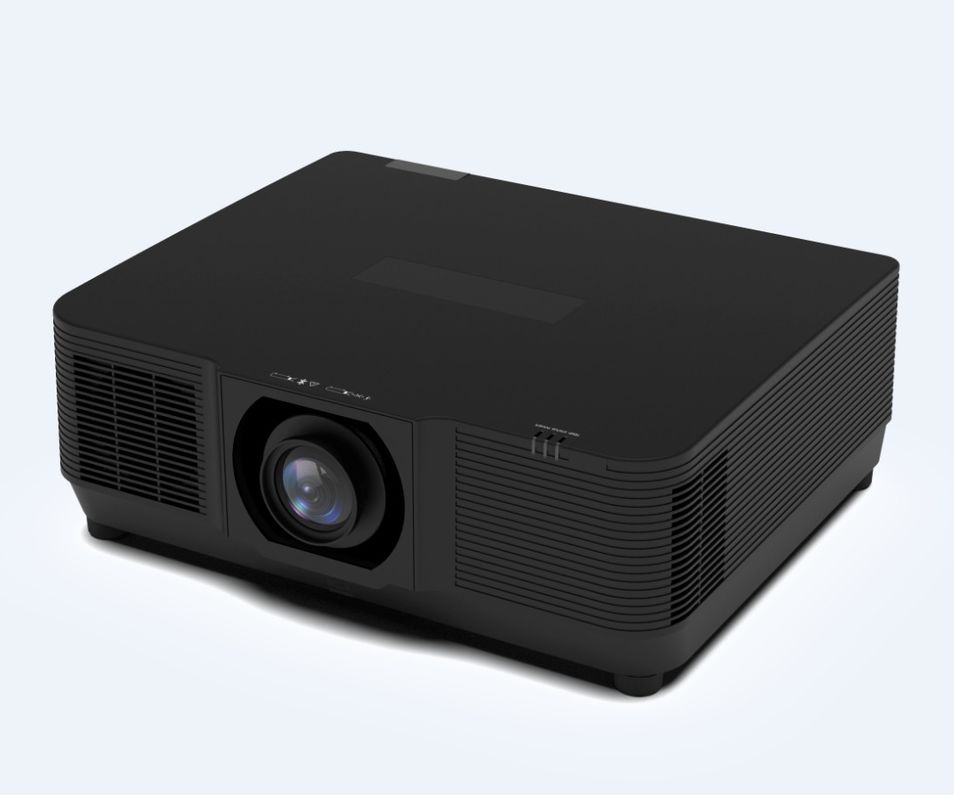

WUXGA DLP Movie Large Venue 4K Projector - Full HD 8300lm 1920x1200

Professional Laser Projector for Large Venues

High-performance WUXGA DLP projector featuring laser light source technology with 8300 lumens brightness and WUXGA (1920 x 1200) resolution. Ideal for professional applications requiring superior image quality in large spaces.

Key Features

Laser Light Source - 20,000 hours long lifetime with stable projection
High Brightness - 8300 lumens (up to 10,000 lumens boost)
WUXGA Resolution - 1920x1200 native resolution with 4K HD input support
Flexible Installation - 360° projection capability with multiple lens options
Comprehensive Connectivity - Dual HDMI, HDBaseT, DVI, and SDI ports

Technical Specifications

Display Technology	3LCD (3x0.76" Sony panels)
Light Source	Laser (20,000 hours in Normal/ECO mode)
Contrast Ratio	100,000:1
Projection Lens	Optional lenses with 1.30-3.02:1 throw ratio
Lens Shift	Vertical: +50% to -10%, Horizontal: ±20%
Keystone Correction	Vertical & Horizontal: ±30°
Aspect Ratio	Native 16:10, Compatible with 4:3/16:9
Screen Size	50-500 inches (80-200 inch performance guarantee)

Connectivity Options

Inputs	2x HDMI 1.4, 1x VGA, 1x DVI-D, 1x HDBaseT, Optional HD-SDI, 1x USB-A, 1x USB-B, 1x RJ45
Outputs	1x HDMI OUT, 1x VGA OUT, Audio out (3.5mm)
Control	RS232, RJ45 (Control), USB-B (For upgrade), Wired Remote IN/OUT

Physical Specifications

Dimensions (WxHxD)	600 × 218 × 503.3 mm
Net Weight	~24 kg
Power Consumption	650W (Normal), 700W (Boost), 400-550W (ECO modes)
Operating Conditions	5°C to 40°C, 20-80% humidity

Applications

Ideal for outdoor projections, large meeting rooms, academic lecture halls, hospital halls, churches, factory workshops, and other professional large venue applications requiring high brightness and superior image quality.

Certifications

CCC, CB, cTUVus, FCC, FDA, CE-EMC, CE-LVD, CE-ERP compliant
