IP6X DLP Large Venue Laser Projectors Wowoto 10000lm For Lecture Hall

Brand Name:	Yeoan
Model Number:	YAM906
MOQ:	5
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Brightness:

10000lm

Standard Resolution:

WUXGA (1920 X 1200)

Display Technology:

3LCD

Projection Light Source:

Laser

Lens Optional:

Yes

Standard Lens Ratio:

1.30-3.02：1

Contrast Ratio:

100000:1

Uniformity:

80%

Standard Lens Shift:

V:＋50%～10%、 H:±20%

Aspect Ratio:

Native:16:10 Compatible: 4:3/16:9

Focus Mode:

Manual Or Auto Optional

Keystone Correction:

V: ±30° H：±30°

Packaging Details:

Packaging Box Dimensions (WxDxH mm): 732*352*630

Highlight:

IP6X Large Venue Laser Projectors

Wowoto Large Venue Laser Projectors

IP6X projector wowoto

Product Description

IP6X DLP Large Venue Laser Projectors Wowoto 10000lm For Lecture Hall

Key Specifications

Brightness	10000lm
Standard Resolution	WUXGA (1920 x 1200)
Display Technology	3LCD
Projection Light Source	Laser
Lens Options	Multiple available
Standard Lens Ratio	1.30-3.02:1
Contrast Ratio	100000:1
Uniformity	80%

Product Overview

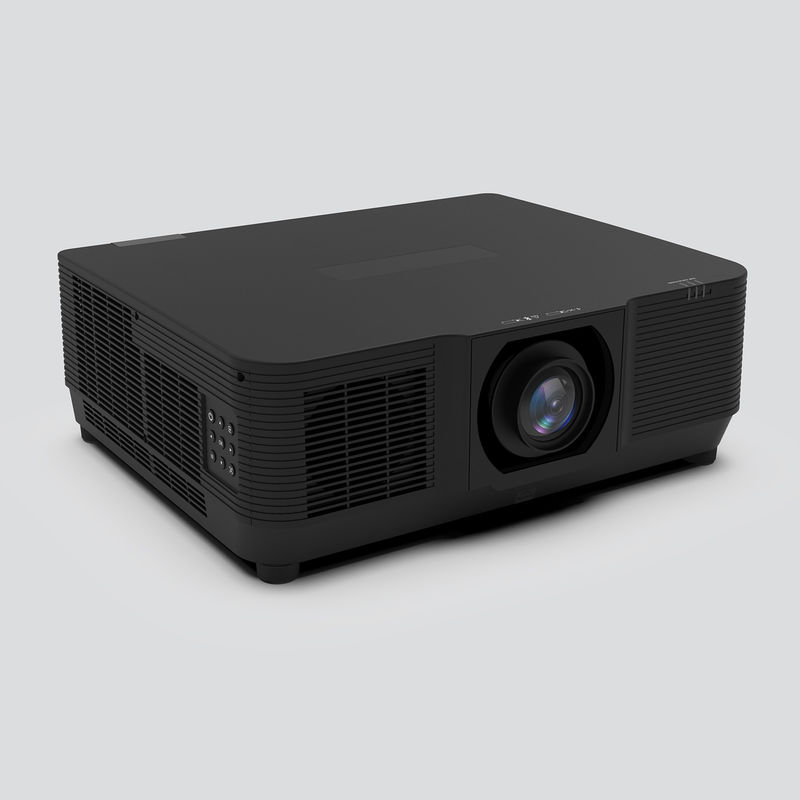

The Wowoto 10000lm DLP large venue projector delivers exceptional performance for demanding professional environments. With WUXGA resolution and laser light source technology, this high-brightness projector is engineered for large-scale installations in auditoriums, lecture halls, and sports arenas.

Key Features

Laser light source with 20,000 hours lifetime
3LCD technology for vibrant color reproduction
10,000 lumens brightness for clear visibility in large spaces
WUXGA resolution (1920×1200) with 4K input support
360° projection capability with protective cover
Multiple lens options (electric/manual) for flexible installation
Closed optical engine design for dust resistance (IP6X optional)

Installation Flexibility

The projector offers motorized lens positioning with memory function, vertical and horizontal lens shift (V: +50% to -10%, H: ±20%), and comprehensive keystone correction (V/H: ±30°). The compact 24kg design supports multiple mounting options.

Connectivity Options

Dual HDMI 1.4 inputs
HDBaseT port for long-distance signal transmission
DVI-D input
3G-SDI option available
VGA input/output
USB display and control ports
Wired remote control interface

Technical Specifications

Projection System
Display Panel	3x0.76" LCD
Light Source Lifetime	20,000 hours (Normal/ECO modes)
Throw Ratio (16:10)	1.30-3.02:1
Screen Size Range	50-500 inches (80-200 recommended)
Performance
Noise Level	32-35 dB (depending on mode)
Power Consumption	450-850W (depending on mode)
Operating Conditions	5-40°C, 20-80% humidity

Applications

Ideal for professional installations in:

Lecture halls and academic institutions
Large meeting rooms and conference centers
Sports arenas and stadiums
Churches and worship spaces
Industrial facilities and workshops
Outdoor projection events
