20000lm 3DLP Large Venue Laser Projectors Led LCD DMD Chip Dual Color Laser

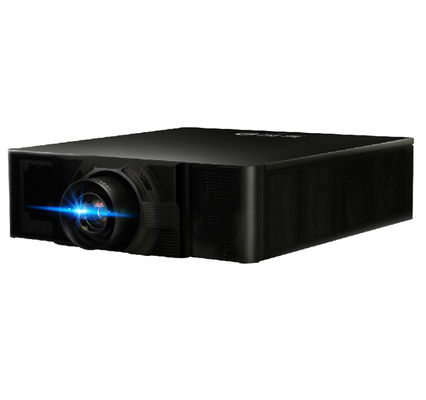

20000lm 3DLP Large Venue Laser Projectors Led LCD DMD Chip Dual Color Laser

Brand Name: Yeoan
Model Number: LP200UL
MOQ: 1
Payment Terms: L/C, T/T, Western Union
Detail Information
Brightness:
20000 Lumens
Light Source:
Dual Color Laser Red And Blue
Display:
DLP
Native Resolution:
1920 X 1200
Throw Ratio:
Optional Lens
Lens Shift Range:
Vertical: ±100% ;horizontal:±30%
Aspect Ratio:
16:9
Focus Mode:
Motorized
Keystone Correction:
Automatic, Vertical: ± 30 Degrees Horizontal: ± 30 Degrees
Install Mode:
360° Projection
Packaging Details:
talked with me to get the details
Highlight:

3DLP Large Venue Laser Projectors

,

LCD DMD Large Venue Laser Projectors

,

LCD DMD 3dlp projector

Product Description
20000lm 3DLP Large Venue Laser Projector with DMD Chip and Dual Color Laser
Key Features
  • 20,000 lumens brightness for exceptional visibility in large venues
  • Dual color laser light source (red and blue) with 20,000-30,000 hour lifespan
  • 0.96" DMD chip with WUXGA resolution (1920 x 1200)
  • Military-grade information system security protection
  • Advanced network control capabilities via RJ-45 interface
  • Aviation-grade testing standards for reliable 24/7 operation
Technical Specifications
Display Technology DLP 0.96" DMD chip
Native Resolution 1920 x 1200
Brightness 20,000 lumens
Contrast Ratio 500,000:1
Light Source Dual color laser (red and blue)
Light Source Life 20,000 hours (standard) / 30,000 hours (ECO mode)
Throw Ratio Optional motorized lenses: 0.62:1, 1.05-1.41:1, 1.42-2.0:1, 2.0-3.0:1
Lens Shift Range Horizontal: ±40% / Vertical: ±100%
3D Support Frame packing, top and bottom, left and right, frame continuous
Power Consumption 1650W @ 220vAC
Dimensions/Weight 640 W x 723 D x 211 H mm / 60.5Kg
Advanced Features
  • Motorized focus and automatic keystone correction (±30° vertical/horizontal)
  • 360° projection capability for flexible installation
  • Power and signal source detection with auto power-on
  • Automatic shutdown and sleep timer functions
  • Four-corner adjustment and color setting capabilities
  • Multiple control interfaces: HDMI 1.4a, DVI, DP, VGA, HDBaset, RS232, MiniUSB, RJ45
  • 110% REC.709 color gamut for vibrant, accurate colors
  • Low noise operation: 45 dB in ECO mode
Professional Applications

This high-performance laser projector is ideal for:

  • Large venue presentations and events
  • Digital signage in commercial spaces
  • Command and control centers
  • Simulation and visualization environments
  • Entertainment and theatrical productions
