HDMI 4k DLP Large Venue Laser Projectors 4500 Ansi Lumens For Intergrated Projection

Brand Name:	Yeoan
Model Number:	YAM906U
MOQ:	1
Price:	negotiate
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Display Technology:

3LCD

Standard Resolution:

WUXGA (1920 X 1200)

Brightness:

10000lm

Projection Light Source:

Laser

Lens Optional:

Manual And Motorized

Standard Lens Ratio:

1.30-3.02：1

Contrast Ratio:

100000:1

Uniformity:

80%

Standard Lens Shift:

V:＋50%～10%、 H:±20%

Keystone Correction:

V: ±30° H：±30°

Aspect Ratio:

Native:16:10 Compatible: 4:3/16:9

Focus Mode:

Manual Or Auto Optional

Packaging Details:

Packaging Box Dimensions (WxDxH mm): 732*352*630

Highlight:

HDMI 4k Large Venue Laser Projectors

4500 ansi Large Venue Laser Projectors

HDMI 4500 ansi lumens projector

Product Description

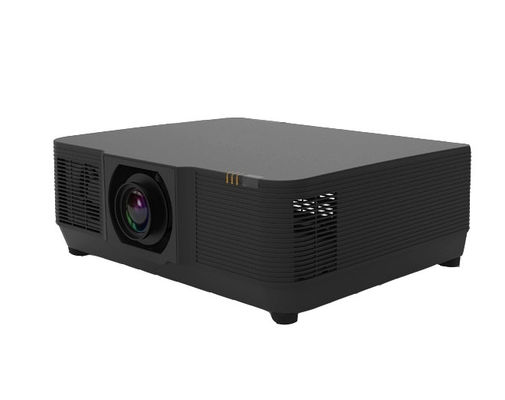

HDMI 4K DLP Large Venue Laser Projectors 4500 ANSI Lumens

Professional-Grade Projection for Demanding Environments

Experience exceptional image quality in lecture halls, conference rooms, museums, and entertainment venues with this 10,000 lumen WUXGA laser 3LCD projector. Designed for large-scale installations, it delivers bright, high-contrast visuals even in challenging lighting conditions.

Key Specifications

Display Technology	3LCD
Resolution	WUXGA (1920 x 1200)
Brightness	10,000 lumens
Light Source	Laser (20,000 hours lifespan)
Contrast Ratio	100,000:1
Lens Options	Manual and motorized available
Throw Ratio	1.30-3.02:1
Screen Size	50-500 inches

Premium Features

Superior Image Quality

10,000 lumens brightness for vivid images
100,000:1 contrast ratio for deep blacks
WUXGA (1920×1200) native resolution
Supports 4K HD input

Advanced Installation

360° projection capability
Multiple lens options (electric/manual)
Lens shift: V +50%/-10%, H ±20%
Keystone correction: V/H ±30°

Comprehensive Connectivity

Dual HDMI 1.4 inputs
HDBaseT port
DVI-D input
SDI port (optional)
HDMI output
Wired remote control I/O

Professional Applications

Large meeting rooms and lecture halls
Museums and exhibition spaces
Entertainment venues
Churches and auditoriums
Industrial environments

Technical Specifications

Projection System
Display Panel	3x0.76" LCD
Uniformity	80%
Aspect Ratio	Native 16:10 (compatible 4:3/16:9)
Power & Operation
Power Consumption	450-850W (depending on mode)
Operating Temperature	5 to 40°C
Noise Level	32-35 dB
Physical Dimensions
Dimensions (W×H×D)	600 × 218 × 503.3 mm
Net Weight	~24 kg

Closed Optical System Design

The projector features a dust-proof closed inner circulation design, ensuring reliable performance even in challenging environments with minimal maintenance requirements.
