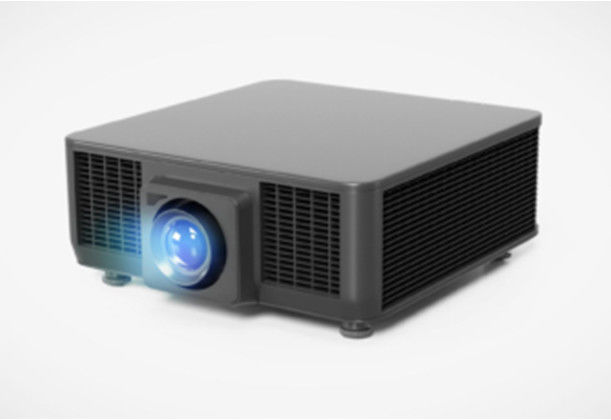

Aviation Grade DLP DMD Large Venue Laser Projectors 9000Lm RS232 Interface

Aviation Grade DLP DMD Large Venue Laser Projectors 9000Lm RS232 Interface

Aviation Grade DLP DMD Large Venue Laser Projectors 9000Lm RS232 Interface

Brand Name: Yeoan
Model Number: YA-W9
MOQ: 5
Payment Terms: L/C, T/T, Western Union
Detail Information
Product Description
Detail Information
Light Luminance:
9000 Lumens
Projection Light Source:
Laser
Display Technology:
DLP
Standard Resolution:
1920×1200 Compatible With 1920×1080, 1280×800, 1024×768
Projection Ratio:
Optional Zoom Lens (0.36-5.5 Zoom Range)
Lens Shift Range:
V: +/-50%, H: +/-15%
Aspect Ratio:
16:10 Compatible With 16:9, 4:3
Focus Mode:
Electric Motorized
Keystone Correction:
Automatic, Vertical: ± 20 Degrees Horizontal: ± 20 Degrees
Projection Mode:
360° Projection
Packaging Details:
talked with me to get the details
Highlight:

DLP DMD Large Venue Laser Projectors

,

RS232 interface Large Venue Laser Projectors

,

Aviation Grade dmd projector

Product Description
Aviation Grade DLP DMD Large Venue Laser Projectors 9000Lm RS232 Interface
Key Specifications
Light Luminance 9000 Lumens
Projection Light Source Laser
Display Technology DLP
Standard Resolution 1920×1200 compatible with 1920×1080, 1280×800, 1024×768
Projection Ratio Optional zoom lens (0.36-5.5 zoom range)
Lens Shift Range V: ±50%, H: ±15%
Aspect Ratio 16:10 compatible with 16:9, 4:3
Focus Mode Electric motorized
Keystone Correction Automatic, vertical: ±20°, horizontal: ±20°
Projection Mode 360° projection
Product Description

High-performance 9000 lumen DLP projection system with laser light source designed for large venue applications.

Advanced Features
  • DLP technology with 0.67" DMD chip for superior image quality
  • Brightness up to 9000 lumens with 3,000,000:1 contrast ratio
  • Long-life laser light source (25,000 hours in ECO mode)
  • Dustproof IP6 level construction for durability
  • Four-corner keystone adjustment and color setting functions
  • RJ-45 interface for network control and RS-232 for centralized management
  • Aviation-grade testing standards for reliable 24/7 operation
  • 720-degree installation flexibility including vertical mounting
Technical Specifications
Model YA-W9
Projection System DLP projection system
Chip Size 0.67" DMD
Light Source Laser phosphor materials
Standard mode: 20,000 hours
Energy saving mode: 25,000 hours
Projection Lens 6 electric lenses with shift, zoom, and focus capabilities
Throw Ratio 0.36:1 to 5.50:1 (depending on optional lens)
Input Ports HDMI 1.4 (x2), DVI-D, HDbaseT, RS232, RJ45, USB, and more
Power 100-240V AC, 575W standard mode (280W energy saving)
Dimensions 484 × 519 × 178mm (without lens)
Weight 17.3kg (without lens)
Operating Environment
  • Working height: 0m-2500m (high altitude mode required above 1500m)
  • Temperature: 5-40℃ (non-condensing)
  • Humidity: 10%-85%
Included Accessories
  • Remote control with batteries
  • Power cord and VGA cable
  • Installation manual and warranty card
  • A06 lens hood
Aviation Grade DLP DMD Large Venue Laser Projectors 9000Lm RS232 Interface 0

Notes: Light output measured at screen center per ISO/IEC 21118:2012 standard. HDBaseT is a trademark of HDBaseT Alliance. At high altitudes above 35°C, optical component lifespan may be reduced.
