| Brand Name: | Yeoan |
| Model Number: | YA-W10 |
| MOQ: | 5 |
| Payment Terms: | L/C, T/T, Western Union |

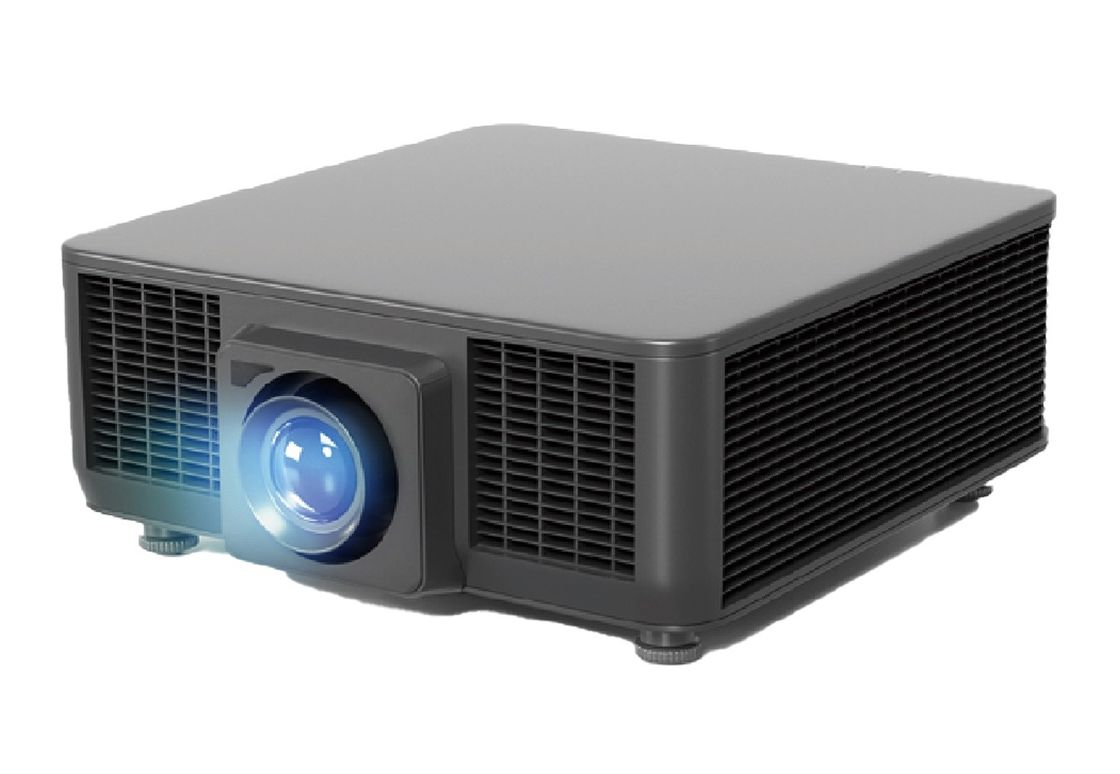

Large Venue Projectors 10000Lm DLP Projection System Laser Light Source Built-In Edge Blending Functions
Features:
. DLP technology 0.67" DMD chip
. Brightness up to 10000 lumens, contrast 3,000,000:1
· Laser light source life 25000 hours (ECO mode)
. Standard resolution 1920×1200 compatible with 1920×1080, 1280×800, 1024×768
. Dustproof IP6 level
· Support four-corner keystone adjustment
· Support 3D
Support color setting function
RJ-45 interface supports multiple network controls
. ProjectorID combined with RS-232 interface can easily realize centralized management
· Aviation-grade rigorous test standard 7" 24-hour uninterrupted work
| model | YA-W10 | |
| Main parameters | Projection System | DLP projection system |
| Chip size | ≥0.67” | |
| Standard resolution | 1920×1200 compatible with 4096×2160 3840×2160, 1920×1080, 1280×800, 1024×768 | |
| Average brightness*1 | 10000lm | |
| Uniformity*2 | 90% | |
| Contrast*2 | ≥1,800:1 static; 10,0000:1 dynamic; 300,0000:1 extreme black | |
| Projection ratio | 16:10 compatible with 16:9, 4:3 | |
| Light source type | type | Laser phosphor materials |
| life | Standard mode: 20,000 hours Energy saving mode: 25,000 hours | |
| Color Wheel | 4-segment (RGBY) color wheel, supports 2X & 3X high-efficiency speed | |
| Projection lens | type | Optional lens supports electric focus, zoom, displacement, a variety of optional lenses: A16, A15, A01, A06, A03, A13 |
| Lens factor | 0.36-5.5:1 | |
| Optional lenses | 0.36:1/ 0.75-0.95:1/ 0.95-1.22:1/ 1.22-1.52:1/ 1.52-2.92:1/ 2.90-5.50:1 | |
| Screen displacement | ≥H:+/-15% , V: +/-50% | |
| Keystone Correction | level | ±20° |
| vertical | ±20° | |
| Image Processing | The product has built-in edge blending and geometric correction functions (supports 17x17 pixel adjustment) | |
| 3D | 3D Format | Top-bottom format, left-right format, frame continuous format, frame packing format |
| 3D signal transmission and reception | Infrared transmitter, RF transmitter, DLP Link glasses | |
| DLPLink Mode | Support switch (select off after starting 3D mode to optimize the picture contrast), Gamma value optimization for 3D signals | |
| 3D Stereo Source | Support LR eye viewing | |
| 3D signal synchronization | Support GOIO & 1st Frame | |
| 3D sync signal frame delay | Adjustment range 0-500 | |
| Supported resolution | 1920×1200 60Hz, 1920×1080 120Hz/60Hz and backward compatible | |
| DLP-Link3D and IR3D supported formats | Up and down, left and right, frame continuous, frame packing (Blu-ray 3D) Note: Supports Full HD special 3D. | |
| Installation | 720-degree installation, supports vertical installation. | |
| Input Port | HDMI 1(v2.0 compatible 4K Support HDCP*3) x1 | |
| HDMI 2 (v2.0 compatible 4K support HDCP*3)x1 | ||
| DVI-D(HDCP*3)x1 | ||
| 15-pin Mini-Dsubx1 | ||
| HDBaseT*4×1 | ||
| 3D SYNC In ×1 | ||
| 3G SDI×1 | ||
| RS232 (D-sub 9 pin) (PC Control)×1 | ||
| Wired x1 3.5mm (for wired remote control) | ||
| RJ45 (LAN)×1 | ||
| USB-Ax1(Wireless LAN & DC5V) | ||
| Output Port | 15-pin Mini-Dsubx1 | |
| 3D SYNC Out×1 | ||
| DC12V out×1 | ||
| Power specifications | 100-240V AC±10%, 50/60Hz | |
| Machine power | Bright mode: 625W+/-15%, Energy saving mode 308W+/-15% | |
| Body material | Molded Plastic | |
| Standby power | ≤0.5W | |
| Dimensions | 484mm (W) × 519mm (D) × 178mm (H) (excluding lens/foot pad) | |
| weight | ≤17.5kg (without lens) | |
| noise | Standard mode: 36dB Energy saving mode: 34dB | |
| Work Environment*5 | Working height | 0m-2500m (use high altitude mode when the altitude is over 1500m) |
| Operating temperature | 5-40℃, no condensation | |
| Operating humidity | 10%-85% | |
| Accessories | AAA alkaline batteries × 2, remote control × 1, power cord × 1, VGA cable × 1, CD-ROM (instruction manual) × 1, quick installation guide, warranty card | |
| Optional Accessories | HDBaseT*4(for long distance transmission), HD Dongle (for wireless transmission) | |
| Notes: 1. The light output data value is measured at the center of the projected image. The measurement method is based on the international standard ISO/IEC 21118:2012. The data value is the average value. 2. The relevant measurement method and annotation method are based on the ISO21118 standard. The data value is the average value. 3. HDCP protocol HDCP (High-bandwidth Digital Content Protection): High-bandwidth digital content protection technology. 4. The HDBaseT trademark is owned by the HDBaseT Alliance. 5. If the projector is used at high altitudes and the ambient temperature exceeds 35°C; the service life of the optical components may be reduced; it is recommended to keep the temperature as low as possible. | ||
