Products
Home / Products / Large Venue Laser Projectors /

ODM 12000Lm Smart DLP Large Venue Laser Projectors System PIP PBP Display

ODM 12000Lm Smart DLP Large Venue Laser Projectors System PIP PBP Display

ODM 12000Lm Smart DLP Large Venue Laser Projectors System PIP PBP Display

Brand Name: Yeoan
Model Number: YA-W12
MOQ: 5
Payment Terms: L/C, T/T, Western Union
Detail Information
Product Description
Detail Information
Light Luminance:
12000 Lumens
Projection Light Source:
Laser
Display Technology:
DLP
Standard Resolution:
1920×1200 Compatible With 1920×1080, 1280×800, 1024×768
Projection Ratio:
Optional Zoom Lens (0.36-5.5 Zoom Range)
Image Processing:
Supports PIP And PBP Display Modes
Aspect Ratio:
16:10 Compatible With 16:9, 4:3
Focus Mode:
Electric Motorized
Keystone Correction:
Automatic, Vertical: ± 20 Degrees Horizontal: ± 20 Degrees
Projection Mode:
360° Projection
Packaging Details:
talked with me to get the details
Highlight:

ODM Large Venue Laser Projectors

,

PIP PBP Large Venue Laser Projectors

,

PIP PBP dlp smart projector

Product Description
ODM 12000Lm Smart DLP Large Venue Laser Projectors System PIP PBP Display
Key Specifications
Light Luminance 12000 Lumens
Projection Light Source Laser
Display Technology DLP
Standard Resolution 1920×1200 compatible with 1920×1080, 1280×800, 1024×768
Projection Ratio Optional zoom lens (0.36-5.5 zoom range)
Image Processing Supports PIP and PBP display modes
Aspect Ratio 16:10 compatible with 16:9, 4:3
Focus mode Electric motorized
Keystone Correction Automatic, vertical: ± 20 degrees, horizontal: ± 20 degrees
Projection Mode 360° projection
Product Description

High-performance 12000Lm DLP projection system with laser light source, designed for large venues with advanced PIP and PBP display modes.

Advanced Features
  • DLP technology with ≥0.67" DMD chip for superior image quality
  • Brightness up to 12000 lumens with 3,000,000:1 contrast ratio
  • Long-life laser light source: 25,000 hours in ECO mode
  • Dustproof IP6 level construction for durability
  • Four-corner keystone adjustment for flexible installation
  • Supports PIP (Picture-in-Picture) and PBP (Picture-by-Picture) display modes
  • Full 3D support with multiple 3D formats
  • Advanced color setting function for precise calibration
  • Network control via RJ-45 interface
  • Aviation-grade testing standards for reliable 24/7 operation
Technical Specifications
Model YA-W12
Projection System DLP projection system
Chip Size ≥0.67"
Uniformity 90%
Color Wheel 4-stage (RGBY) high-efficiency speed
Light Source Life Standard mode: 20,000 hours, Energy saving mode: 25,000 hours
Projection Lens 6 electric lenses: electric shift, electric zoom, electric focus
Throw Ratio 0.36-5.5:1
Dimensions 484mm (W) × 519mm (D) × 188mm (H) (excluding lens)
Weight 23.75kg (excluding lens)

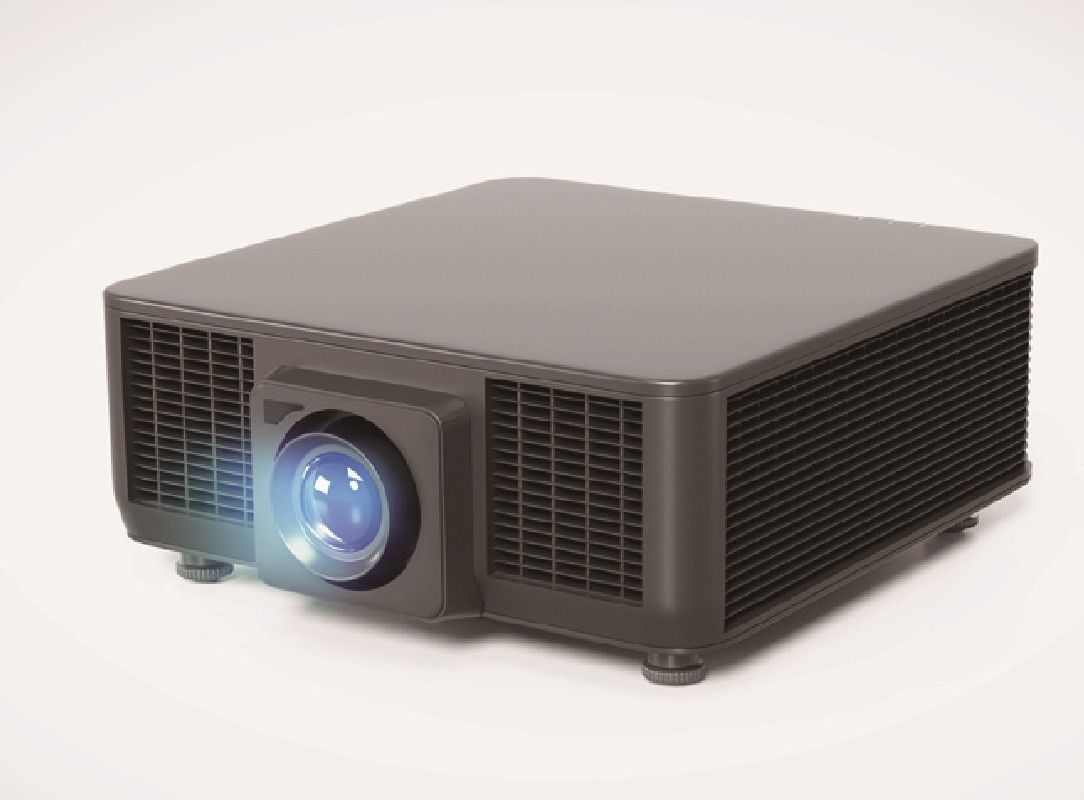

ODM 12000Lm Smart DLP Large Venue Laser Projectors System PIP PBP Display 0
Note: The light output data value is measured at the center of the projected image based on ISO/EC 21118:2012 standard. For high altitude use above 1500m, high altitude mode is recommended.
