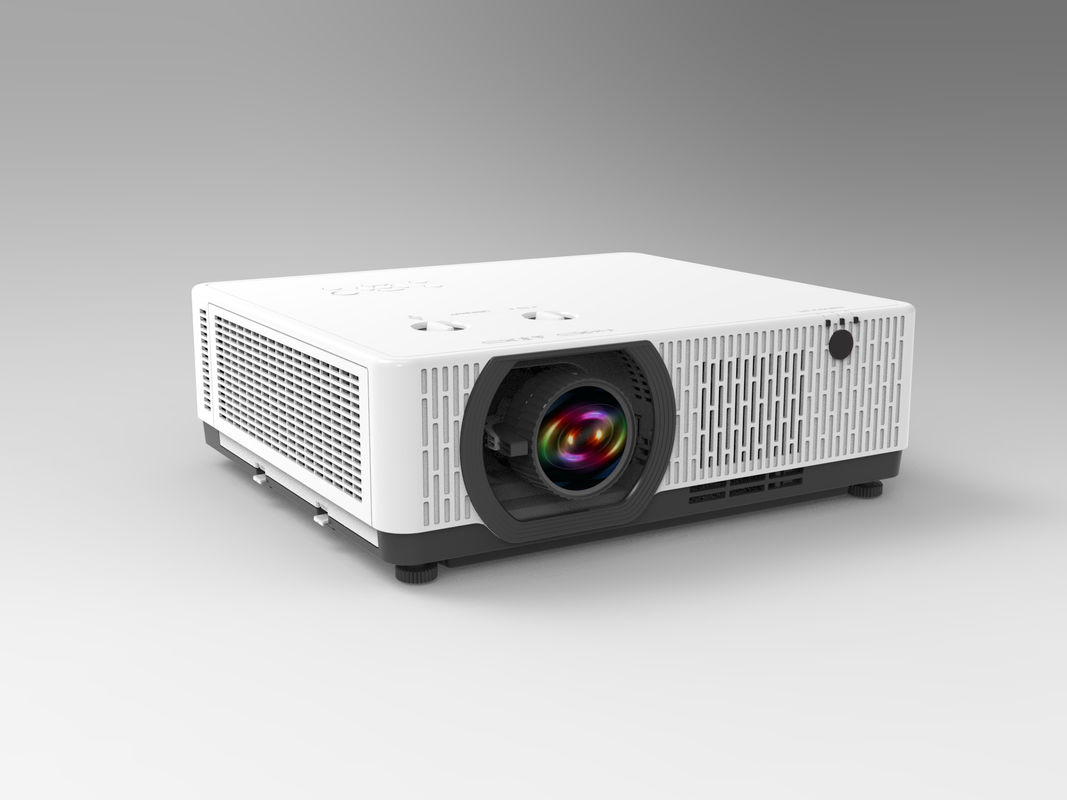

720p Large Venue Interactive 4K DLP Projector For Classrooms Teaching 8000lm

Brand Name:	Yeoan
Model Number:	YA806U
MOQ:	5
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Brightness:

8000lm

Display Technology:

3LCD

Standard Resolution:

WUXGA (1920 X 1200)

Throw Ratio:

1.2~2.0：1

Projection Light Source:

Laser

Zoom Ratio:

1.6X Zoom

Focus Mode:

Manual

Aspect Ratio:

Native:16:10 Compatible: 4:3/16:9

Keystone Correction:

V: ±30° H：±30°

Lens Shift:

V:＋60%～0%、 H:±29%

Packaging Details:

Packaging Box Dimensions (WxDxH mm): 510（W)*498(D)*260(H)

Highlight:

720p 4K DLP Projector

Interactive 4K DLP Projector

Large Venue 720p dlp projector

Product Description

720p Large Venue Interactive 4K DLP Projector For Classrooms Teaching 8000lm

Key Features

300-inch projection screen for immersive viewing experience

5,000,000:1 dynamic contrast ratio for superior image quality

30,000 hours of long light source life with laser technology

Low noise operation (as low as 29dB in ECO2 mode)

Diffuse reflection imaging for eye protection

Advanced hexagonal & multi-point correction

Optional wireless projection module available

Product Overview

This professional-grade 3LCD projector delivers exceptional performance for large venues with its 8000lm brightness and WUXGA resolution. The laser light source ensures long-lasting operation with minimal maintenance, while the 1.6X zoom and lens shift capabilities provide flexible installation options. Ideal for educational environments, corporate meeting rooms, and digital signage applications.

Technical Specifications

Display Technology	3LCD (0.64" with MLA)
Resolution	WUXGA (1920 x 1200)
Brightness	8000lm (MKT), 7200lm (TYP), 6400lm (MIN)
Contrast Ratio	5,000,000:1
Light Source	Laser (20,000-30,000 hours life)
Throw Ratio	1.2-2.0:1
Zoom Ratio	1.6X
Lens Shift	Vertical: +60% to 0%, Horizontal: ±29%
Keystone Correction	Vertical/Horizontal: ±30°
Screen Size	30-300 inches
Noise Level	39dB (Normal), 31dB (ECO1), 29dB (ECO2)
Dimensions	405 × 358 × 137 mm (W×D×H)
Weight	7.9kg (Net), 10.4kg (Gross)

Connectivity Options

Inputs	VGA, HDMI 2.1, USB-A, USB-B (Display), RJ45 (Display), HD BaseT (Optional)
Outputs	VGA, Audio out (3.5mm)
Control	RS232, RJ45 (Control), USB-B (For upgrade)
Audio	16W speaker, Audio in/out (3.5mm)

Advanced Features

360° projection capability for flexible installation
Edge blending for seamless multi-projector setups
Multiple picture modes including Dynamic, Standard, Cinema, and DICOM simulation
26 language OSD support
LAN control compatibility (RoomView, AMX Discovery, PJ Link)
Auto setup functions including input search and auto keystone
