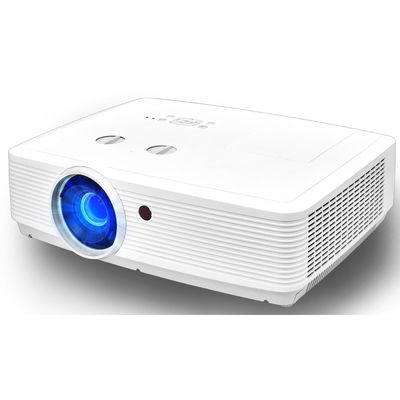

Commercial 3LCD 4K DLP Projector Smart Mini Projector XGA WXGA WUXGA 6000lm

Commercial 3LCD 4K DLP Projector Smart Mini Projector XGA WXGA WUXGA 6000lm

Commercial 3LCD 4K DLP Projector Smart Mini Projector XGA WXGA WUXGA 6000lm

Brand Name: Yeoan
Model Number: YA566
MOQ: 20
Payment Terms: L/C, T/T, Western Union
Detail Information
Product Description
Detail Information
Certification:
CCC CE CB FCC
Brightness:
6000lm
Display Technology:
3LCD
Projection Light Source:
Lamp
Standard Resolution:
XGA (1024 X 768)
Projection Size:
30-300"
Throw Ratio:
1.16~1.9：1
Projectioin Screen:
30-300 Inch
Aspect Ratio:
Native:16:10 Compatible: 4:3/16:9
Focus Mode:
Manual
Lens Shift:
Yes
Keystone Correction:
V: ±30° H：±15° Corner
Inputs:
HDMI, VGA, USB, RS232, RJ45
Built-In Speakers:
Yes
Contrast Ratio:
10,000:1
Packaging Details:
Packaging Box Dimensions (WxDxH mm): 495*440*230
Highlight:

Commercial 4K DLP Projector

,

3LCD 4K DLP Projector

,

XGA WXGA smart mini projector

Product Description
Commercial 3LCD 4K DLP Projector Smart Mini Projector XGA WXGA WUXGA 6000lm
Key Features
  • 6000lm brightness for clear visibility even in well-lit environments
  • 3LCD display technology for vibrant, color-accurate projections
  • WUXGA (1920 x 1200) native resolution with Full HD 1080p support
  • Up to 300" projection size for large venue applications
  • 10,000:1 contrast ratio with HDR color support
  • 1.6x optical zoom and lens shift functionality
  • 3000-4000 hour lamp life (Normal/ECO modes)
  • Comprehensive connectivity including HDMI, VGA, USB, RS232, RJ45
Technical Specifications
Display Technology 3LCD (3x0.64" DML panels)
Brightness 6000lm (5500 ANSI lumens)
Native Resolution WUXGA (1920 x 1200)
Contrast Ratio 10,000:1 (with IRIS & ECO mode)
Projection Size 30-300 inches
Throw Ratio 1.08-1.76 (1.6x optical zoom)
Lens Shift Vertical: ±45% | Horizontal: ±10%
Keystone Correction Vertical: ±30° | Horizontal: ±15° | Corner adjustment
Connectivity & Controls
Inputs
  • VGA (2 ports)
  • HDMI (2 ports, one MHL compatible)
  • USB-A (memory viewer/WiFi dongle support)
  • USB-B (display)
  • RJ45 (display/control)
  • Audio in (3.5mm, RCA)
Outputs
  • VGA (shared with input)
  • Audio out (3.5mm)
Control
  • RS232
  • RJ45 (PJ Link, Crestron RoomView, AMX Discovery)
  • USB-B (for firmware upgrade)
Physical Specifications

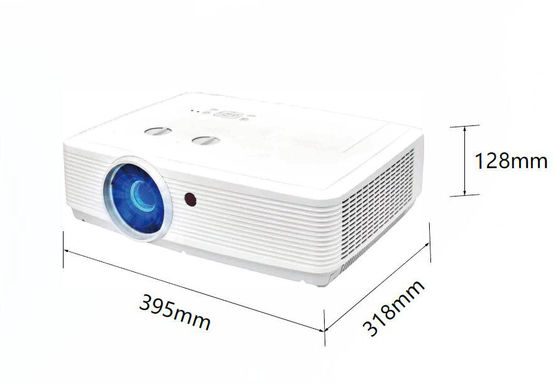

Dimensions (WxHxD) 395 × 318 × 128 mm
Weight 4.45 kg (net) | 6 kg (gross)
Power Consumption Normal: ~410W | ECO: ~287W
Operating Conditions Temperature: 0°C to 40°C | Humidity: 20% to 85%
Noise Level ECO: 35dB | Normal: 41dB
Additional Features
  • 26 language OSD support
  • Multiple picture modes (Dynamic, Standard, Cinema, Blackboard, Colorboard)
  • Auto setup functions (input search, auto PC, auto keystone)
  • Security features (password protection, control panel lock, Kensington lock)
  • High altitude mode (1400-2700m)
  • Closed caption support
  • Includes power cord, VGA cable, and remote control with batteries
